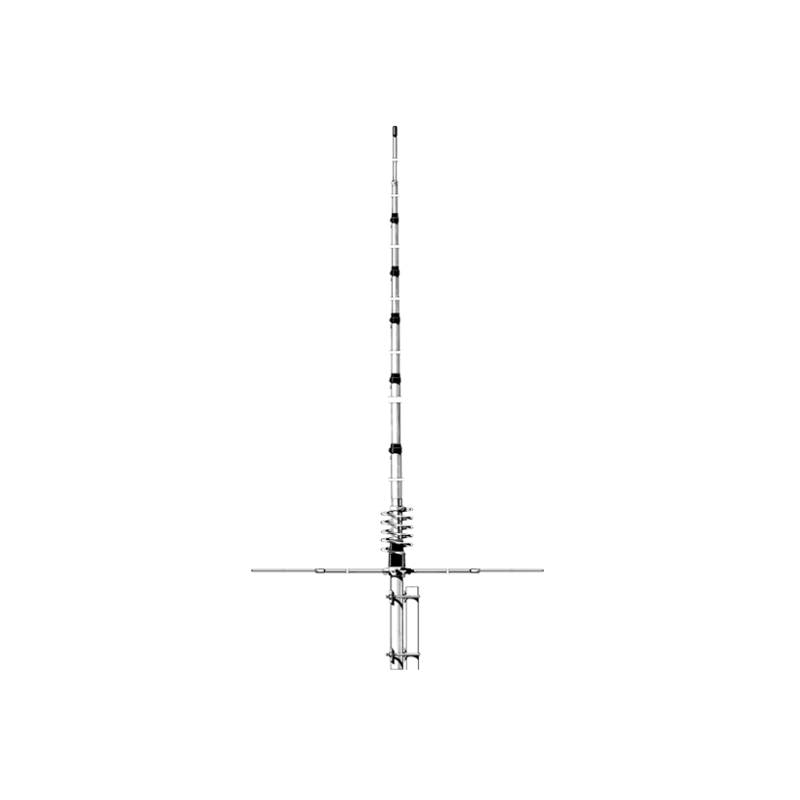

SIRIO NEW TORNADO 27
€93.00
Base station antenna
Omnidirectional
High power handling capability
Whip equipped whit waterproof jointing sleeve
Made of aluminium alloy 6063 T-832
UP-GRADE: Tunable by whip length adjusting
Electrical Data
Type: 5/8 λ ground plane
Frequency range: tunable form 27 to 30 MHz
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain: 1.2 dBd, 3.35 dBi
Bandwidth @ SWR ≤ 2: ≥ 1300 KHz
SWR @ res. freq.: ≤ 1.2 @ 27 MHz
Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female
Mechanical Data
Materials: Aluminium, Steel, Nylon
Wind load / resistance: 187 N at 150 Km/h / 130 Km/h
Wind surface: 0.16 m²
Height (approx.): 7230 mm
Weight (approx.): 2900 gr
Radial Length (approx.): 2000 mm
Mounting mast: Ø 35-42 mm
