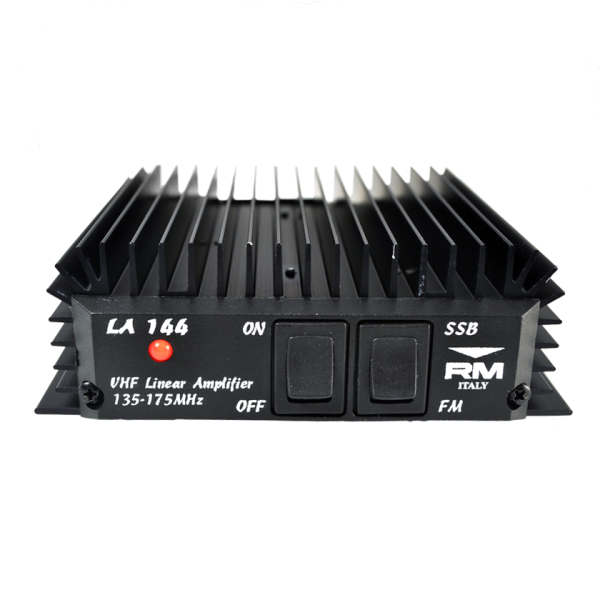

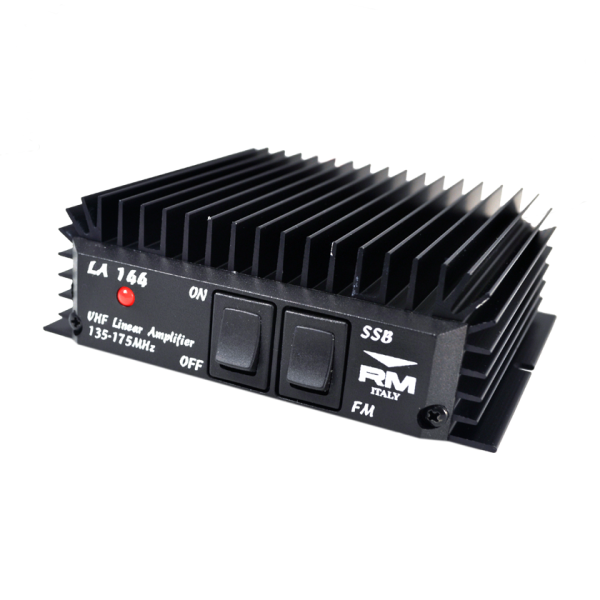

RM LA 144

177.00
The LA 144 is a 60W 12V linear amplifier for use in the VHF 135 – 175 MHz band, requiring an input power of 0.5 – 4 W maximum. Technical Specifications :
  • Frequency: 135-175MHz continuous
  • Power Supply: : 12-14Vdc
  • Input Power: 0.5-4W max
  • Output Power: 60W
  • Input VSWR: 1.1-1.5:1
  • Fuse: 12 A (5x20mm Fast)
  • Dimensions: L 125 W 120 H 40 mm
  • Weight: 470 g

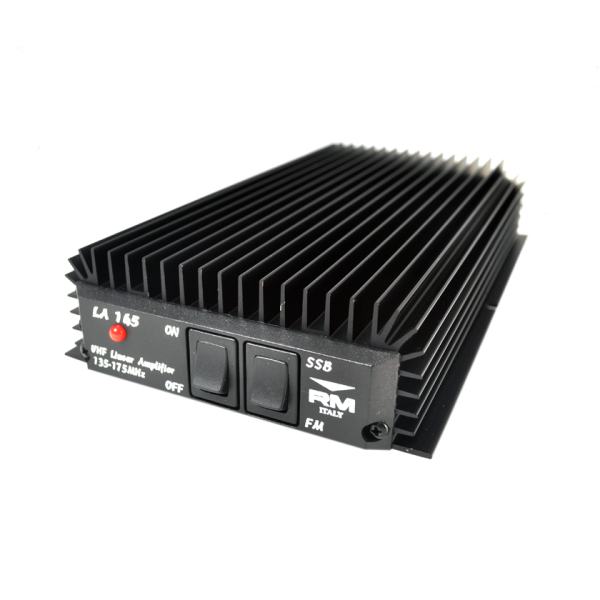

RM LA 145

235.00
LA 145 is a 80W 12V linear amplifier for use in the VHF 135 – 175 MHz band, with an input power of 0.5 – 4 W maximum. Technical Specifications :
  • Frequency: 135-175MHz continuous
  • Power Supply: : 12-14Vdc
  • Input Power: 0.5-4W max
  • Output Power: 80W
  • Input VSWR: 1.1-1.5:1
  • Fuse: 12 A (5x20mm Fast)
  • Dimensions: L 230 W 120 H 40 mm
  • Weight: 735 g

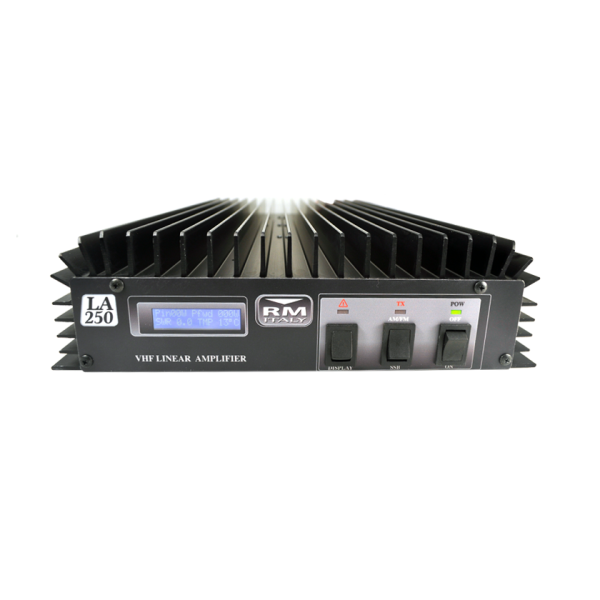

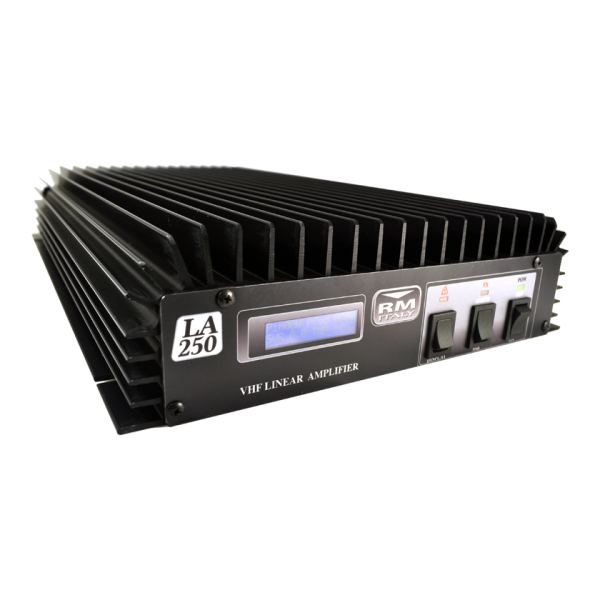

RM LA 250

The LA 250 is a 200W 12V linear amplifier for use in the VHF 140 – 150 MHz, (2m), band, with an input power of 1 – 15 W. The LA 250 has an illuminated LCD display where all the parameters of the apparatus are indicated. It also features protection for excessive antenna VSWR, excessive input power and over temperature. Technical Specifications :
  • Frequency: 140—150 MHz (2m Amateur VHF Band)
  • Power Supply: 13VDC+/- 1V 40A
  • Input Power: 1-20W max (All modes)
  • Output Power: 200W @1dB Gain Compression
  • Input VSWR: 1.1-1.5:1
  • Fuse: 3x10A (5x20mm Fast)
  • Dimensions: L 420 W 240 H 67 mm
  • Weight: 4.090 Kg

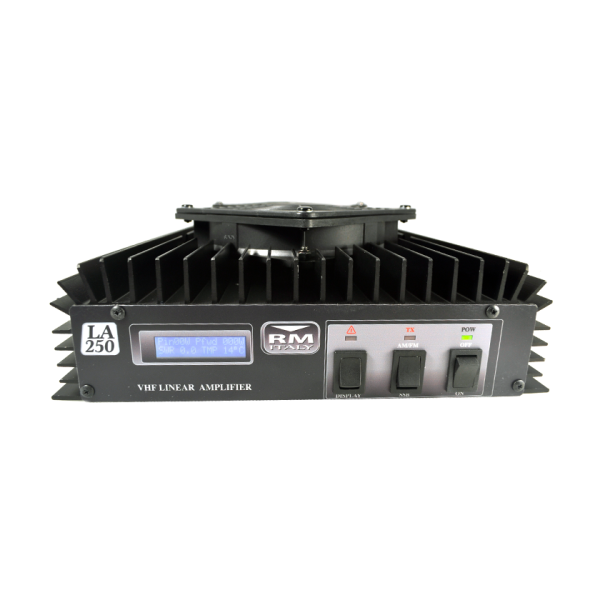

RM LA 250 V

The LA 250 V is a 200W 12V linear amplifier for use in the VHF 140 – 150 MHz, (2m), band, with an input power of 1 – 15 W. The LA 250 V has an illuminated LCD display where all the parameters of the apparatus are indicated. It also features protection for excessive antenna VSWR, excessive input power and over temperature. The V model features two 120mm cooling fans attached to the heatsink. Technical Specifications :
  • Frequency: 140—150 MHz (2m Amateur VHF Band)
  • Power Supply: 13VDC+/- 1V 40A
  • Input Power: 1-20W max (All modes)
  • Output Power: 200W @1dB Gain Compression
  • Input VSWR: 1.1-1.5:1
  • Fuse: 3x10A (5x20mm Fast)
  • Dimensions: L 420 W 240 H 90 mm
  • Weight: 4.250 Kg

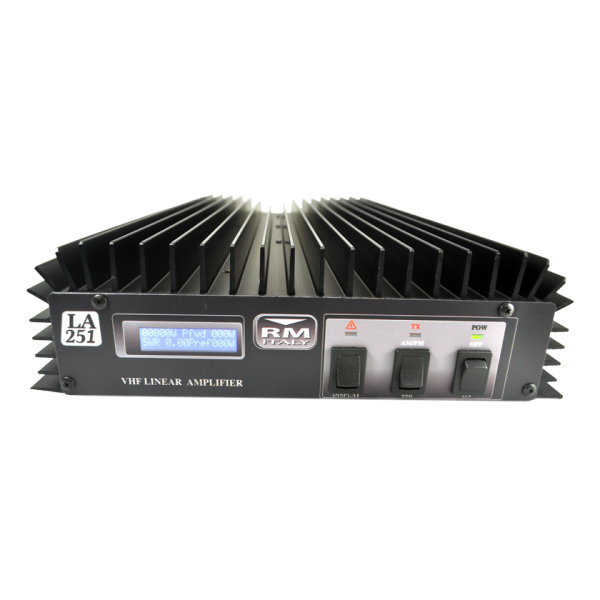

RM LA 251

The LA 251 is a 200W 12V linear amplifier for use in the VHF 150 – 160 MHz band, with an input power of 1 – 15 W. The LA 251 has an illuminated LCD display where all the parameters of the apparatus are indicated. It also features protection for excessive antenna VSWR, excessive input power and over temperature. Technical Specifications :
  • Frequency: 150—160 MHz
  • Power Supply: 13VDC+/- 1V 40A
  • Input Power: 1-20W max (All modes)
  • Output Power: 170W @1dB Gain Compression
  • Input VSWR: 1.1-1.5:1
  • Fuse: 3x10A (5x20mm Fast)
  • Dimensions: L 420 W 240 H 67 mm
  • Weight: 4.090 Kg
