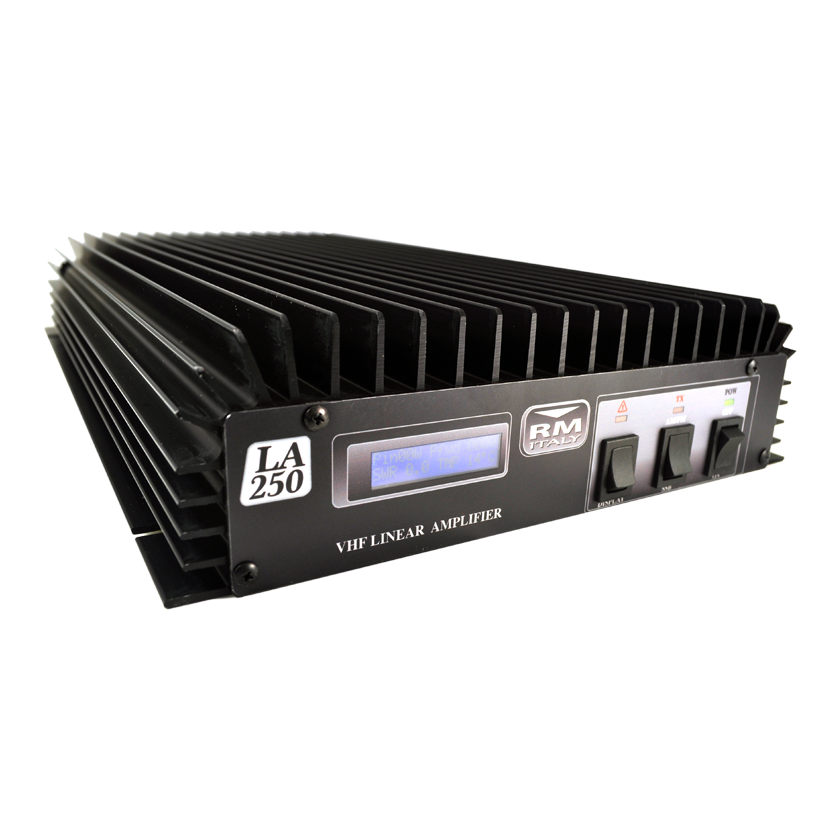

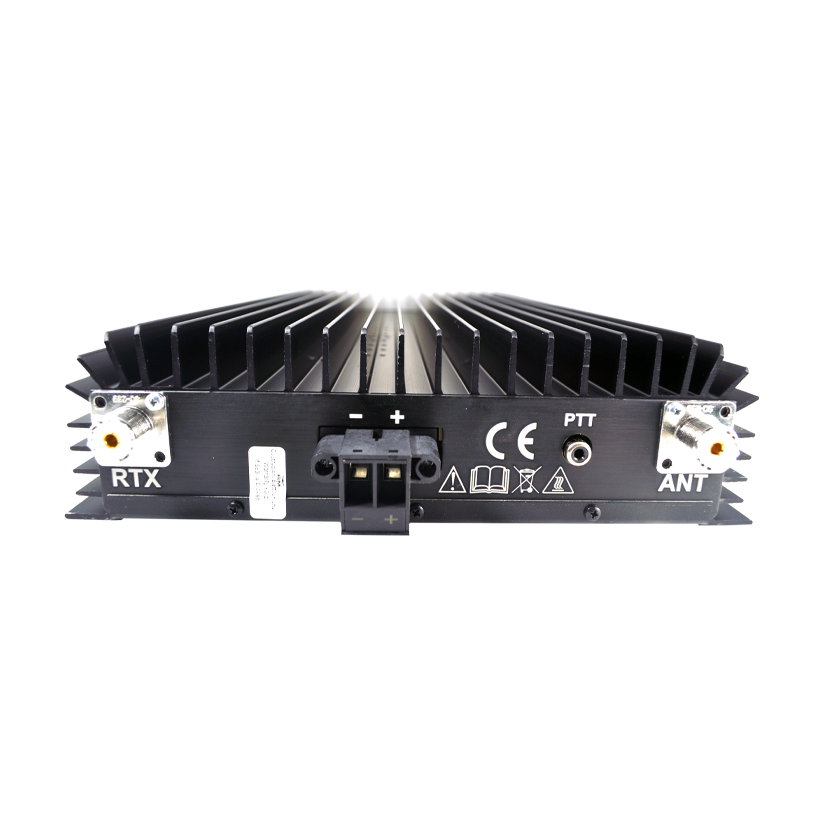

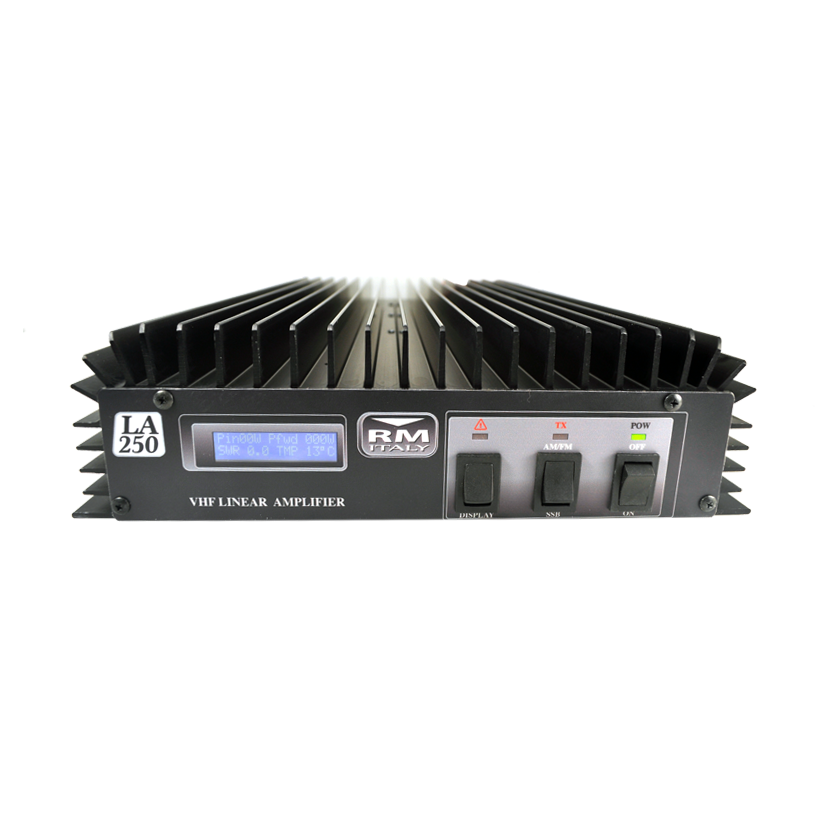

RM LA 250

The LA 250 is a 200W 12V linear amplifier for use in the VHF 140 – 150 MHz, (2m), band, with an input power of 1 – 15 W. The LA 250 has an illuminated LCD display where all the parameters of the apparatus are indicated. It also features protection for excessive antenna VSWR, excessive input power and over temperature.

Technical Specifications :

• Frequency: 140—150 MHz (2m Amateur VHF Band)
• Power Supply: 13VDC+/- 1V 40A
• Input Power: 1-20W max (All modes)
• Output Power: 200W @1dB Gain Compression
• Input VSWR: 1.1-1.5:1
• Fuse: 3x10A (5x20mm Fast)
• Dimensions: L 420 W 240 H 67 mm
• Weight: 4.090 Kg
