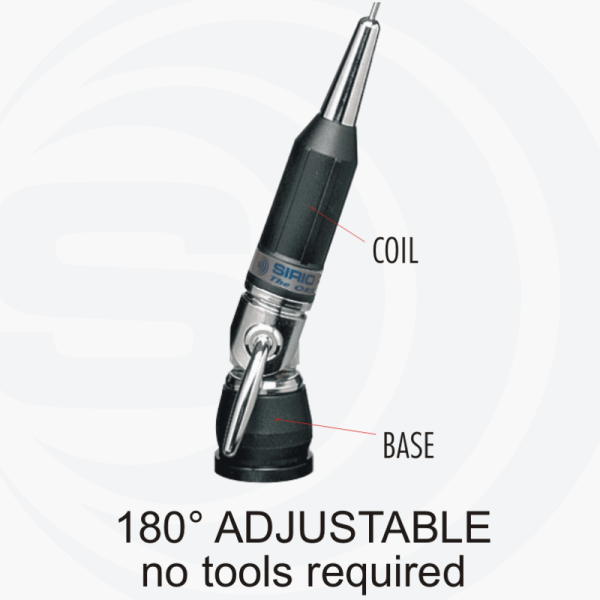

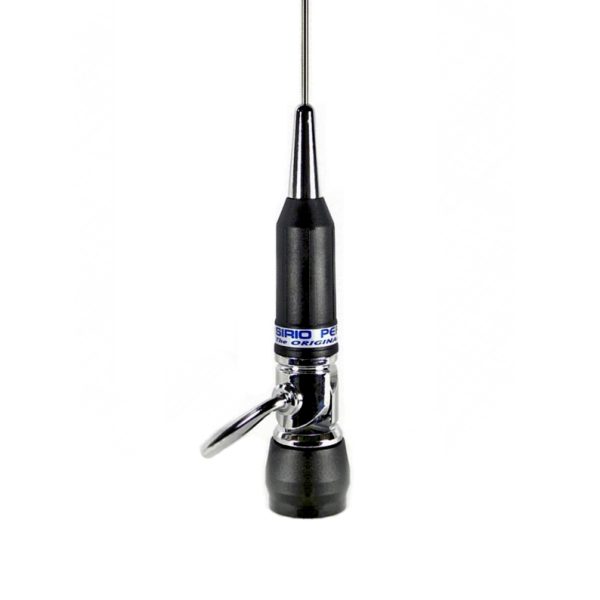

SIRIO PERFORMER P-800
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer – Max power up to 300W
Mount: PERFORMER 800, 2000 & 5000 LED
Electrical Data:
| Type: | Base loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 28.5 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: | PERFORMER P-800:
≥ 1.4MHz @ SWR ≤ 2 |
| Max Power: | 200 Watts (CW) continuous 1000 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Cable lenght / type: | PERFORMER P-800:
4 m (13.12 ft) / RG58 |
| Connector: |
PERFORMER P-800: Not supplied |
Mechanical Data:
| Materials: | Copper, Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): | PERFORMER P-800:
1650 mm / 5.41 ft |
| Weight (approx): | 600 gr / 1.32 lb |
| Mounting type: | PERFORMER P-800:
Thru-Hole |
SIRIO PERFORMER 5000 PL
Δεν Περιλαμβάνεται Καλώδιο.
- CB & 10m Mobile antennas
- Very High power handling capability
- Tunable from 27 to 30 MHz
- Protection from static discharges DC-Ground
- 17/7 PH tapered stainless steel whip
- Whip detachable for car-wash
- Suitable for magnetic mount installation
- Hi-power cable available (for hole mounting only)Part Numbers:
P/N 2218505.51 PERFORMER-5000 PLElectrical Data - Type: base loaded
- Frequency range: 27 … 30 MHz
- Impedance: 50 Ω
- Polarization: linear vertical
- SWR @ res. freq.: ≤ 1.2
- Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (200 channel)
- Max. power: 1500 Watts (CW) continuous / 5000 Watts (CW) short timeMechanical Data
- Mounting: TURBO-5000 PL, PERFORMER-5000 PL: UHF-male (PL 259)
- Cable lenght/Type: PL version: not supplied
- Height (approx.): 1965 mm
- Weight (approx.): 650 gr

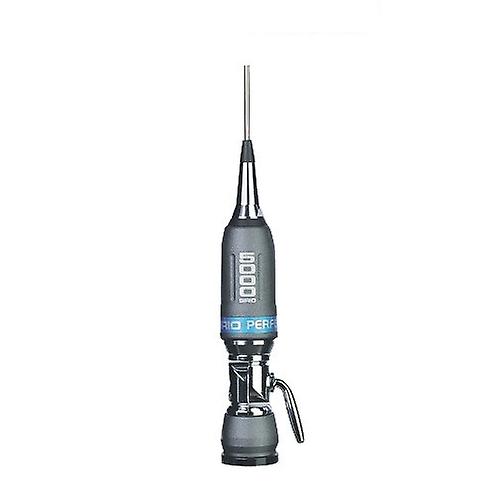

SIRIO PERFORMER-5000
Περιλαμβανεται Καλωδιο: 4m/13ft Cable for NE-PL
Max power up to 300W
Mount: PERFORMER 5000
Electrical Data:
| Type: | Base loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 30 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: | ≥ 2MHz @ SWR ≤ 2 |
| Max Power: | 1500 Watts (CW) continuous 5000 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Cable lenght / type: | 4 m (13.12 ft) / RG58 |
Mechanical Data:
| Materials: | Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized |
| Height (approx): | 1965 mm / 6.45 ft |
| Weight (approx): | 650 gr / 1.43 lb |
| Mounting type: | Thru-Hole |

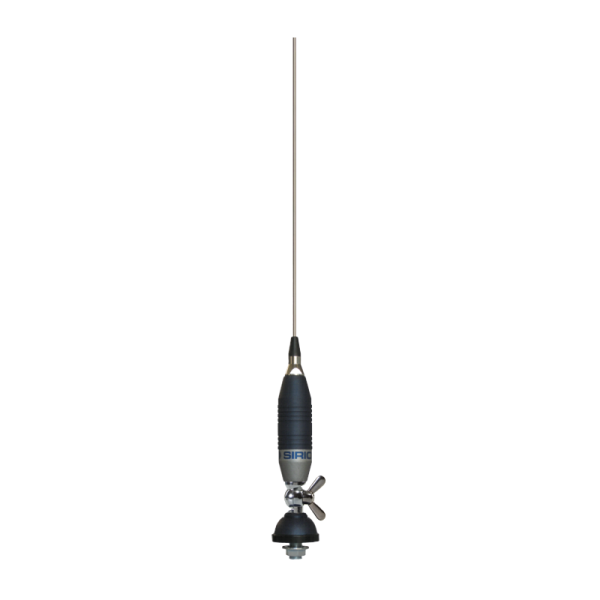

SIRIO SUPER 70 Blue Line
| Electrical Data | |
| Type: | base loaded |
| Frequency range: | 27 … 28.5 MHz |
| Impedance: | 50 Ω |
| Polarization: | linear vertical |
| Bandwidth @ SWR ≤ 2: | ≥ 1200 KHz (100 channel) |
| SWR @ res. freq.: | ≤ 1.2 |
| Max. power: | 15 Watts (CW) continuous |
| 150 Watts (CW) short time | |

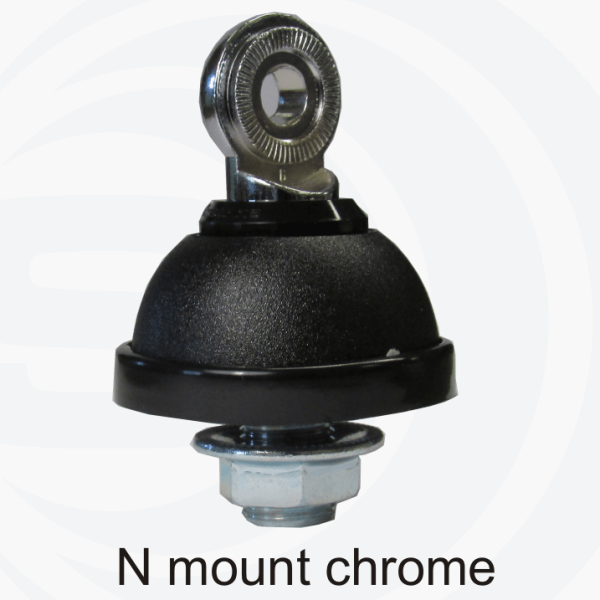

| Standard mount: | «N» |
| Cable lenght / Type: | 4 m / RG 58 |
| Mechanical Data | |
| Materials: | Brass, Copper, Nylon, Stainless Steel |
| Height (approx.): | 700 mm |
| Weight (approx.): | 380 gr |
| Mounting hole: | Ø 12.5 mm |

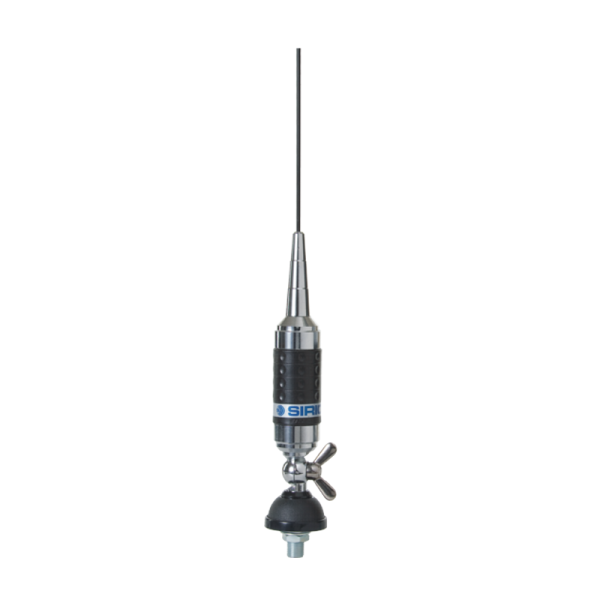

SIRIO SUPER CARBONIUM
Ανθεκτική CB κεραία οχήματος
Μήκος 1,45μ
Δυνατότητα ρύθμισης της γωνίας κλίσης.
Ιδανική λύση για μικρά φορτηγά και επιβατικά αυτοκίνητα.
Περιλαμβανεται καλώδιο σύνδεσης 4m RG58 C/U
Features:
CB & 10m Mobile antenna
Tunable from 27 to 28.5 MHz
17/7 PH tapered stainless steel whip
180° inclination and adjustable whip, detachable for car-wash
Suitable for magnetic mount
Electrical Data
Type: base loaded
Frequency range: 27 ... 28.5 MHz
Impedance: 50 Ω
Polarization: linear vertical
Bandwidth @ SWR ≤ 2: SUPER CARBONIUM 27: ≥ 1850 KHz (170 channel)
SWR @ res. freq.: ≤ 1.2
Max. power: SUPER CARBONIUM 27: 35 Watts (CW) continuous, 250 Watts (CW) short time
Standard mount : "N"
Cable lenght / Type : 4 m / RG 58
Mechanical Data
Materials: Brass, Copper, Nylon, Stainless Steel
Height (approx.): SUPER CARBONIUM 27: 1400 mm
Weight (approx.): 480 gr
Mounting hole: Ø 12.5 mm.

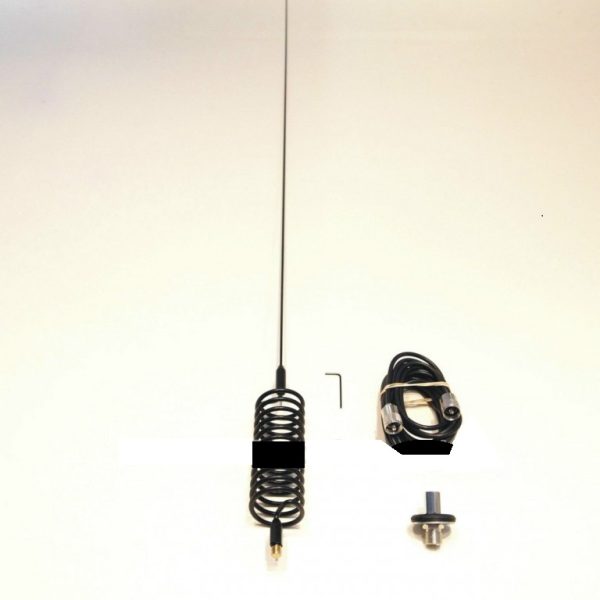

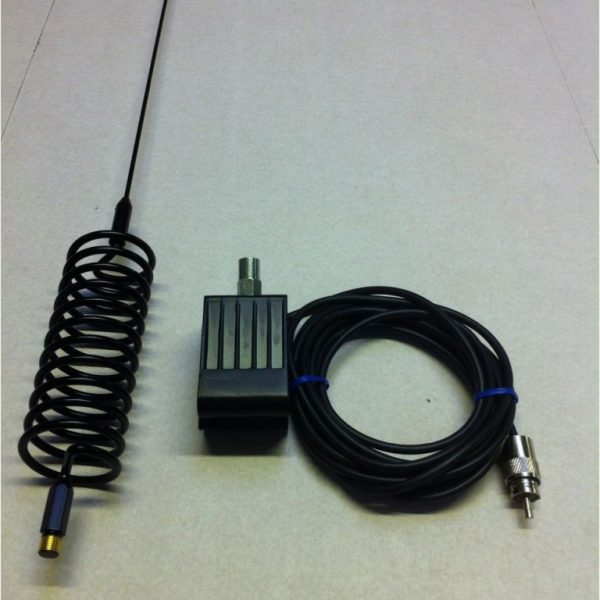

Springer Stinger CB Antenna + Large Washer Body Mounting Kit CB Radio Aerial
Large Washer Body Mount Kit Black Springer/Stinger
Specification:
- Fitting 3/8 UNF
- Cable 4 meters RG58
- Connector PL-259
- Technical Specifications
- Base Loaded mobile antenna
Power handling 1000 watts
Length 1.55 m
Coil length 150 mm
Coil diameter 50 mm
Impedance 50 Ohms
Frequency 26-28 MHz
SWR 1:1.5
Fitting 3/8 unf
Whip 17.7 ph Stainless Steel

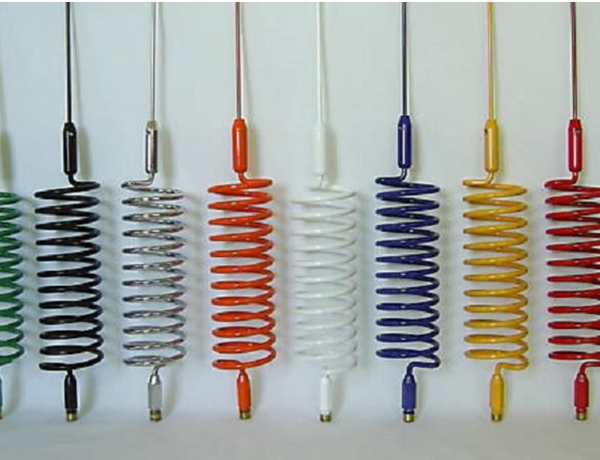

Stinger Springer Tornado 1.55m CB Antenna Aerial BLACK Omni Directional
Known for it’s flexibility and strength the Original Stinger will ensure years of use.
The
antennas and has a reliable 10+ Mile range. Constructed of spring steel brass fittings and
a 17.7ph Stainless Steel tapered whip
Specifications
- 1/4 wave base loaded mobile antenna
- Power Handling 1000 watts
- Length 1.55m
- Coil length 150mm
- Coil diameter 50 mm
- Impedance 50 Ohms
- Frequency 27-28 Mhz (full 80 channel coverage)
- SWR 1:1.5
- Fitting 3/8 UNF
- Whip: 17/7 ph Stainless Steel

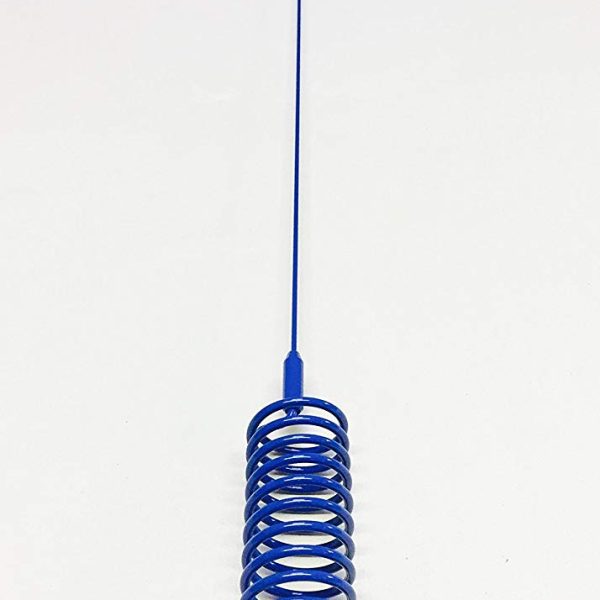

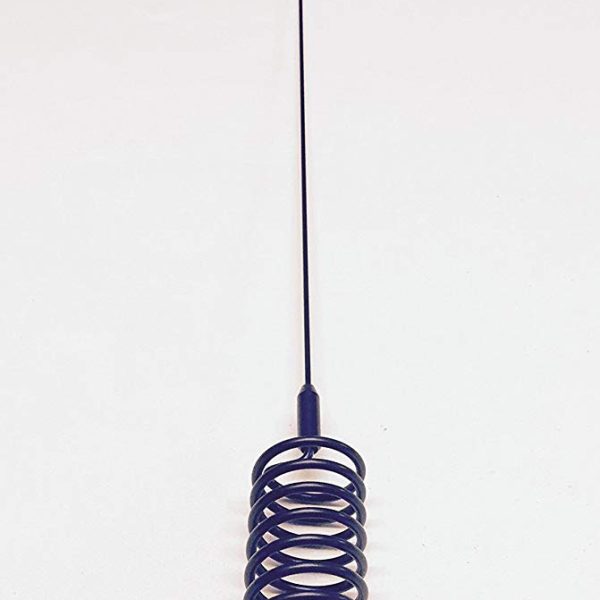

Stinger Springer Tornado 1.55m CB Antenna Aerial BLUE Omni Directional
Known for it’s flexibility and strength the Original Stinger will ensure years of use.
The
antennas and has a reliable 10+ Mile range. Constructed of spring steel brass fittings and
a 17.7ph Stainless Steel tapered whip
Specifications
- 1/4 wave base loaded mobile antenna
- Power Handling 1000 watts
- Length 1.55m
- Coil length 150mm
- Coil diameter 50 mm
- Impedance 50 Ohms
- Frequency 27-28 Mhz (full 80 channel coverage)
- SWR 1:1.5
- Fitting 3/8 UNF
- Whip: 17/7 ph Stainless Steel

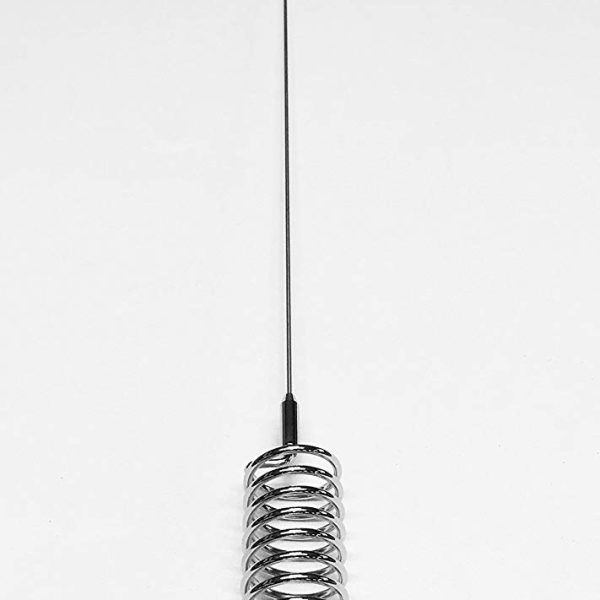

Stinger Springer Tornado 1.55m CB Antenna Aerial CHROME Omni Directional
Known for it’s flexibility and strength the Original Stinger will ensure years of use.
The
antennas and has a reliable 10+ Mile range. Constructed of spring steel brass fittings and
a 17.7ph Stainless Steel tapered whip
Specifications
- 1/4 wave base loaded mobile antenna
- Power Handling 1000 watts
- Length 1.55m
- Coil length 150mm
- Coil diameter 50 mm
- Impedance 50 Ohms
- Frequency 27-28 Mhz (full 80 channel coverage)
- SWR 1:1.5
- Fitting 3/8 UNF
- Whip: 17/7 ph Stainless Steel

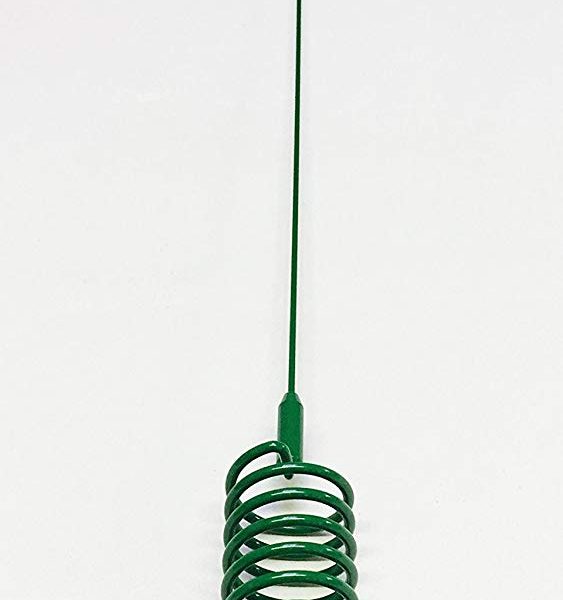

Stinger Springer Tornado 1.55m CB Antenna Aerial GREEN Omni Directional
Known for it’s flexibility and strength the Original Stinger will ensure years of use.
The
antennas and has a reliable 10+ Mile range. Constructed of spring steel brass fittings and
a 17.7ph Stainless Steel tapered whip
Specifications
- 1/4 wave base loaded mobile antenna
- Power Handling 1000 watts
- Length 1.55m
- Coil length 150mm
- Coil diameter 50 mm
- Impedance 50 Ohms
- Frequency 27-28 Mhz (full 80 channel coverage)
- SWR 1:1.5
- Fitting 3/8 UNF
- Whip: 17/7 ph Stainless Steel
